The battery separator acts as the silent enabler of modern energy storage. It produces zero energy itself. Yet, it strictly dictates the safety, cycle life, and thermal limits of your entire system. For battery engineers and procurement teams, selecting the right separator is a high-stakes balancing act. You must maximize porosity for efficient ion flow. Simultaneously, you must maintain robust mechanical strength to prevent catastrophic short circuits. Failing to strike this delicate balance often leads to premature cell degradation or dangerous thermal runaway events.
This guide breaks down the commercial viability, engineering trade-offs, and compliance realities of standard and advanced separator materials. We explore everything from standard polyolefins to specialized ceramic coatings. You will learn exactly how to match the right porous material to your specific battery chemistry and performance requirements.
The dominant commercial materials for lithium-ion applications are microporous polyolefins, specifically the PE separator and Polypropylene (PP) films.
Material selection requires compromising between variables: wet-process films offer better porosity uniformity, while dry-process films generally provide higher mechanical strength.
To mitigate thermal runaway, modern high-density batteries rely on multi-layer "shutdown" architectures (e.g., PP/PE/PP) or ceramic-coated composites rather than bare polymer films.
Lead-acid systems primarily utilize the AGM separator (Absorbent Glass Mat) to prevent stratification and enable start-stop automotive capabilities.
Navigating the crowded landscape of base materials requires understanding which chemical families are proven at scale. You cannot swap materials arbitrarily across different battery types. Each chemistry demands a highly specific physical barrier.
Polyolefins dominate the commercial lithium-ion market. They offer exceptional chemical stability in highly reactive environments. They also do not degrade when exposed to standard carbonate-based liquid electrolytes.

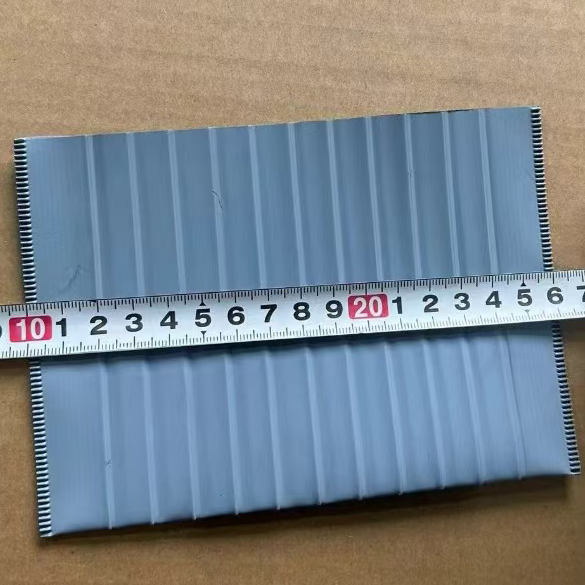

The standard PE separator is typically manufactured via a wet process known as Thermally Induced Phase Separation (TIPS). This method produces an excellent, uniform pore structure. More importantly, polyethylene features a lower melting point of approximately 135°C. This specific temperature threshold is critical. It triggers a thermal shutdown mechanism before the battery reaches catastrophic failure. The pores melt shut, effectively blocking ion transport and halting the electrochemical reaction.
Polypropylene (PP), conversely, is usually manufactured via a dry process. It delivers superior high-temperature stability. Its melting point hovers around 165°C. PP films also exhibit higher tensile strength compared to PE films. However, they are inherently more brittle. This brittleness can complicate the winding processes during cylindrical cell manufacturing.
Lead-acid batteries operate in an entirely different chemical environment. They rely heavily on sulfuric acid. Consequently, polyolefins are not always the optimal choice for specialized lead-acid formats.
The traditional AGM separator is composed of micro-glass fibers. It functions uniquely as both a physical barrier and a microscopic sponge. The glass mat absorbs and immobilizes the liquid sulfuric acid electrolyte. This absorption eliminates liquid pooling. It directly enables the production of maintenance-free sealed lead-acid (SLA) batteries.
Researchers continually push beyond conventional porous films. Solid-state electrolytes and gel polymer electrolytes (GPE) are emerging as dual-purpose solutions. They act as both the electrolyte and the physical separator. However, we must acknowledge their current limitations. Massive scalability hurdles and poor room-temperature ionic conductivity keep these alternatives relegated to niche applications or laboratory settings for now.
Direct comparison of the two dominant polyolefins informs better cell design and simplifies your shortlisting process. You must weigh safety features against structural integrity.
Thermal safety remains the primary driver in electric vehicle (EV) applications. PE offers an ideal, early "fuse" effect. When an overcurrent event occurs, the internal temperature spikes. The PE pores melt shut rapidly to block ion flow. This early intervention prevents catastrophic thermal runaway.
PP, on the other hand, resists higher ambient operating temperatures without shrinking. It maintains the physical barrier between electrodes longer during a severe heating event. Choosing between them means deciding whether you want early intervention (PE) or prolonged structural survival (PP).
The manufacturing process strictly dictates the final physical properties of the polymer film. You must understand how these films are stretched and formed.
The wet process relies on plasticizers and solvent extraction. It creates highly interconnected, isotropic pores. These round pores look like a complex sponge under a microscope. A Polyethylene Battery Separator manufactured through this method wets out quickly. It absorbs electrolyte uniformly. However, it remains highly sensitive to environmental stress and tension.
The dry process uses physical extrusion and mechanical stretching. It creates slit-like pores. This method is highly scalable. It suits high-power-density applications perfectly. Yet, dry-process films are prone to transverse mechanical weakness. They can split if stretched improperly during cell assembly.
Relying on a single-layer bare polymer limits your safety redundancy. Bare films struggle against sharp lithium dendrites. They also fail rapidly under aggressive mechanical abuse, such as EV crush tests. Engineers now universally agree that single-layer polymer films are insufficient for modern high-energy-density cells.
Feature/Metric | Polyethylene (PE) | Polypropylene (PP) |
|---|---|---|
Primary Manufacturing Process | Wet Process (TIPS) | Dry Process (Extrusion/Stretching) |
Pore Structure | Isotropic (Round, interconnected) | Anisotropic (Slit-like) |
Melting Point (Shutdown Temp) | ~135°C (Early thermal fuse) | ~165°C (Delayed shutdown) |
Mechanical Characteristics | Highly flexible, sensitive to stress | High tensile strength, somewhat brittle |
Best Use Case | Complex wetting, high-safety cells | High-power, fast-assembly cells |
Overcoming the limitations of bare polyolefins represents a major engineering success. High-nickel, high-voltage, and fast-charging applications demand advanced architectures. You must upgrade the physical barrier without adding excessive thickness.
The "Shutdown Sandwich" (PP/PE/PP):
Engineers developed co-extruded tri-layer designs to combine the best traits of both polyolefins. The inner PE layer acts as the thermal fuse. It melts to shut down the battery during thermal events. Meanwhile, the outer PP layers maintain strict mechanical separation. They prevent absolute shorting even after the PE core has melted.
Inorganic Ceramic Coatings:
Bare polymers shrink under high heat. Adding a ceramic layer stabilizes the film dramatically.
Alumina (Al₂O₃): This coating provides extreme heat resistance. It delays thermal runaway propagation significantly. It also scavenges hydrofluoric acid (HF) from degraded electrolytes, prolonging overall cell life.
Boehmite (γ-AlOOH): Boehmite offers similar thermal and puncture-resistant benefits to Alumina. However, it possesses a lower Mohs hardness. It is softer on slitting tooling. This drastically reduces manufacturing wear and lowers facility maintenance costs.
Functional Polymer Coatings (PVDF):
Polyvinylidene fluoride (PVDF) enhances electrolyte affinity. It improves electrode-to-separator adhesion. This adhesion proves specifically valuable in pouch cell formats. It maintains cell rigidity and prevents delamination during rapid charge and discharge cycles.
An effective evaluation framework aligns the material choice directly with the intended end-use application. One size never fits all in battery design.
Electric vehicles and utility-scale energy storage systems demand absolute maximum energy density. They require ultra-thin separators, often measuring less than 15 μm. You must specify ceramic-coated PE or PP/PE/PP blends here. These architectures maximize volumetric efficiency while strictly adhering to rigorous automotive safety standards.
Internal combustion vehicles and uninterrupted power supplies (UPS) operate under constant physical vibration. They rely heavily on the AGM separator. The highly compressed glass mat prevents active material shedding. It provides unmatched high-rate discharge reliability, which is essential for engine cranking.
Next-generation chemistries present aggressive internal environments. Commercial polyolefins fail here immediately. Lithium-sulfur systems suffer from the "shuttle effect," where polysulfides migrate across the cell and destroy capacity. Lithium-metal anodes grow sharp metallic dendrites that pierce bare polymers easily. For these systems, your evaluation must shift to functionalized composites. Consider graphene-oxide coatings, transition metal-doped layers, or entirely dense ceramic solid electrolytes.
Engineers and procurement buyers need objective metrics to vet supplier spec sheets. Do not rely solely on marketing claims. You must verify actual performance data.
Permeability vs. Tortuosity: You must evaluate MacMullin numbers and Gurley values. The Gurley value measures air permeability. It indicates how easily ions will flow. A low Gurley value ensures fast ion transport. However, the internal tortuosity (the twisted path through the pores) must remain complex enough to prevent a direct, straight path for dendrite growth.
Thickness vs. Puncture Strength: The industry constantly drives toward higher volumetric energy density. This drive shrinks film thickness. Advanced Li-ion cells standardize around 9–12 μm films. You must balance this thinness against required tensile and puncture strength. A premium PE separator must survive intense winding tensions and jagged electrode asperities without tearing.
Thermal Shrinkage Rates: High-temperature dimensional stability is non-negotiable. Verify that thermal shrinkage remains below 3% at 130°C. If the film shrinks excessively, the separator edges will recede. This recession exposes the anode directly to the cathode, guaranteeing a short circuit.
Wettability: Assess how quickly and uniformly the material absorbs your specific electrolyte formulation. Excellent wettability reduces cell formation time. It eliminates dry spots and directly clears manufacturing bottlenecks.
Metric Category | Standard Target Value | Why It Matters for Cell Design |
|---|---|---|
Gurley Value (sec/100cc) | 150 – 300 seconds | Measures air permeability; dictates maximum ion discharge rates. |
Porosity (%) | 35% – 50% | Balances ion flow volume against mechanical solid structure. |
Puncture Strength (gf) | > 300 gf | Defends against electrode roughness and sharp dendrite penetration. |
Thermal Shrinkage (MD/TD) | < 3% @ 130°C (1 hour) | Prevents edge receding and internal shorting during heat spikes. |
The choice of separator material is always a calculated compromise. You must weigh ionic conductivity against physical resilience. While the PE separator provides unmatched thermal shutdown safety, and the AGM separator completely dominates legacy lead-acid systems, modern high-performance applications refuse to settle for bare baselines. They demand highly engineered coated or multi-layer solutions to survive rigorous use.
As a critical next step, we recommend engineers initiate rigorous supplier audits immediately. Demand comprehensive thermal shrinkage data and specific Gurley value requirements. Verify process compatibility (wet vs. dry) regarding your chosen electrolyte. Always secure sample rolls for dedicated pilot line testing before committing to high-volume commercial procurement.
A: The wet process uses solvent extraction to form highly interconnected, isotropic (round) pores. It provides excellent wettability and is typically used for PE. The dry process uses physical extrusion and stretching to create slit-like, anisotropic pores. It is highly scalable, physically stronger under tension, and generally used for PP.
A: PE possesses a naturally lower melting point of approximately 135°C. During an overcurrent or overheating event, the polymer melts just enough to close its micropores. This acts as an internal thermal fuse, completely blocking ion flow and halting the electrochemical reaction before catastrophic thermal runaway occurs.
A: No, standard liquid-electrolyte batteries cannot function without a physical separator. The anode and cathode would touch, causing an immediate, dangerous short circuit. However, emerging solid-state batteries use solid electrolytes that simultaneously conduct ions and physically separate the electrodes, effectively replacing the traditional porous polymer film.
A: AGM stands for Absorbent Glass Mat. It is composed of fine micro-glass fibers rather than stretched polyolefin plastics. It acts uniquely as a sponge to absorb and immobilize liquid sulfuric acid. This specific absorption mechanism prevents electrolyte stratification and is used exclusively in sealed lead-acid battery architectures.
