What keeps a lead-acid battery operating safely and efficiently? The separator prevents contact between the electrodes while allowing ions to pass through.
To achieve this, the material must combine high porosity, mechanical strength, low electrical resistance, and resistance to sulfuric acid.
Modern manufacturers increasingly use the PE Separator, made from ultra-high molecular weight polyethylene and silica, for reliable flooded lead-acid battery performance.
Primary Function: Separators must provide an absolute physical barrier to prevent short circuits while maintaining a highly controlled microporous structure to allow unimpeded sulfate and hydrogen ion exchange.
Material Dominance: The PE seperator (Polyethylene) dominates the flooded lead-acid market due to its optimal balance of low electrical resistance, high oxidation resistance, and mechanical flexibility.

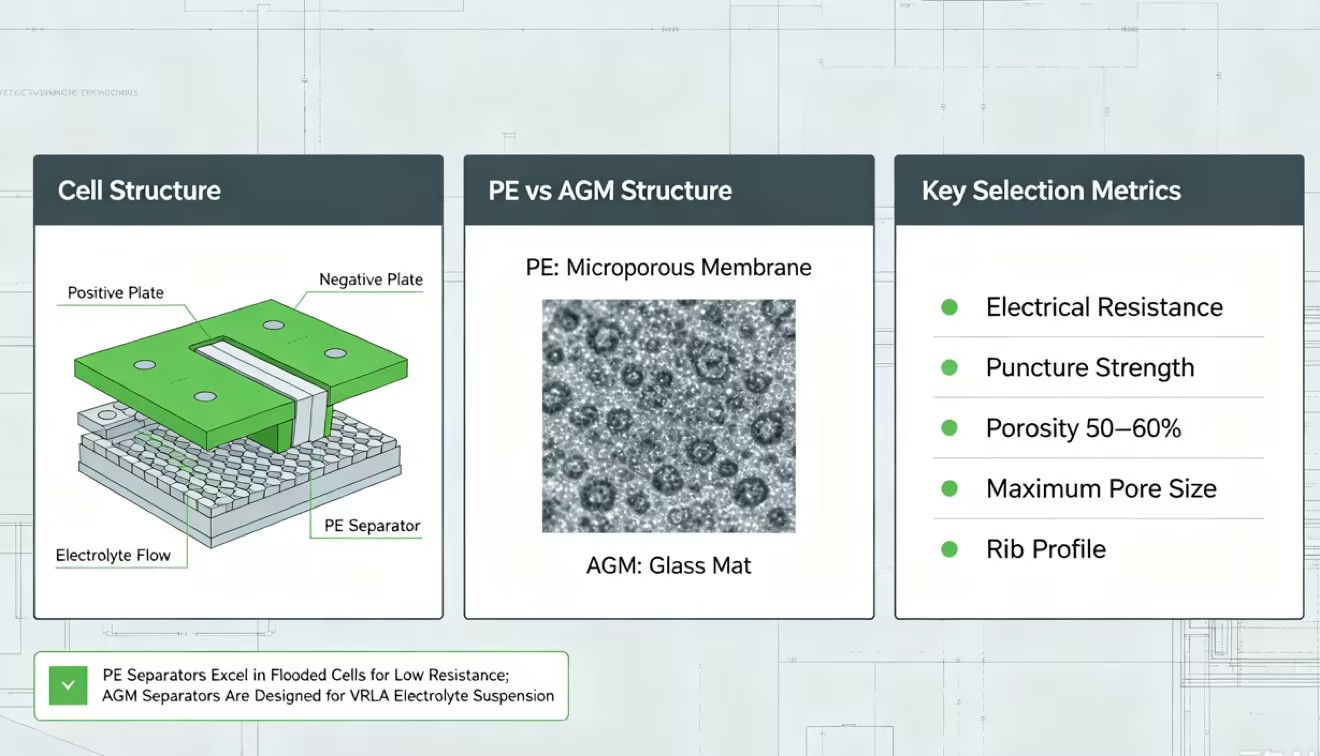

Evaluation Metrics: Procurement and engineering decisions must hinge on specific KPIs: electrical resistance (ER), puncture strength, porosity percentage, maximum pore size, and impact on self-discharge rates.
Manufacturing Impact: Improper separator selection or poor envelope sealing during assembly directly correlates to premature battery failure via dendritic growth, bottom shorts, or parasitic loads.
Table of Contents
Maintaining a strict physical barrier between the positive lead dioxide plates and the negative sponge lead plates is a hard requirement. If these active materials touch, the cell immediately shorts. This causes rapid discharge, localized heating, and severe thermal hazards. The separator serves as this primary line of defense against catastrophic failure.
Over repeated charge and discharge cycles, lead-acid batteries suffer from dendritic growth. Lead treeing occurs when dissolved lead ions precipitate out of the electrolyte, forming microscopic metallic needles. These dendrites attempt to bridge the gap between plates. A high-quality separator physically blocks these structures. The membrane must possess sufficient puncture resistance to stop dendrite penetration without compromising the flow of the electrolyte.
Engineers design separators to mitigate several specific failure modes through physical isolation:
Direct Plate Contact: Preventing the positive and negative grids from touching during the physical expansion that occurs during discharge.
Active Material Shedding: Catching loose lead dioxide particles before they fall into the mud space and accumulate enough to bridge the bottom of the plates.
Dendrite Penetration: Forcing lead treeing to navigate a complex pore structure, stalling its growth before it reaches the opposing plate.
While physical isolation provides safety, the separator cannot impede the electrochemical reaction. It must feature a highly engineered microporous structure. This allows the liquid sulfuric acid electrolyte to flow freely between the plates. The efficiency of this ionic transfer directly impacts the battery's ability to deliver current, especially under heavy loads.
Engineers measure this efficiency through a concept called tortuosity. Tortuosity refers to the complex, winding path of the pores within the material. A straight pore would allow direct line-of-sight contact, increasing the risk of shorting and dendrite penetration. High tortuosity forces ions to navigate a maze-like structure. This prevents active material from bridging the gap while still enabling rapid ion exchange. Balancing total porosity with optimal tortuosity ensures the battery maintains high efficiency while preventing internal shorts.
The specific gravity of the sulfuric acid changes dynamically during operation. As the battery discharges, the acid becomes less dense as sulfate ions bond to the plates. The separator must maintain its wettability and allow this changing fluid to diffuse rapidly. If the pores restrict diffusion, the acid concentration drops locally at the plate surface, severely limiting power output.
Lead-acid batteries naturally lose charge over time. This internal self-discharge often stems from parasitic loads within the cell. One major culprit is antimony migration. Manufacturers frequently add antimony to positive grids to improve mechanical strength and deep-cycle performance. During operation, antimony ions dissolve into the electrolyte and migrate toward the negative plate.
When antimony deposits on the negative plate, it lowers the hydrogen overpotential. This accelerates gassing and water loss, driving up the self-discharge rate. An advanced separator actively blocks the transfer of these heavy metal ions. By trapping antimony within its porous network, the separator reduces parasitic loads. This directly extends the battery's shelf life and maintains long-term operational efficiency, reducing the frequency of maintenance charging required in storage.
Internal battery space is highly constrained by the dimensions of the outer casing. Every cubic millimeter occupied by inert plastic is space taken away from active electrolyte. Separators must therefore occupy minimal volume within the cell. Thinner back-webs and optimized rib profiles help achieve this goal without sacrificing mechanical integrity.
Lower acid displacement by the separator yields a higher volume of available sulfuric acid. More acid directly translates to increased battery capacity and better thermal mass for heat dissipation. Engineers constantly push the limits of material science to reduce separator thickness. However, this reduction must be carefully balanced against the mechanical strength required to withstand plate expansion and assembly line handling.
The manufacturing process of a modern PE Seperator relies on precise chemical blending and phase separation. Facilities mix ultra-high molecular weight polyethylene (UHMWPE) with precipitated silica and a plasticizer oil. This mixture undergoes high-temperature extrusion to form a continuous sheet. Following extrusion, a solvent extraction process removes the majority of the plasticizer oil, leaving behind a highly porous network.
Standard polyethylene is inherently hydrophobic. It repels water and acid. The addition of silica is the primary engineering step that makes the material viable for batteries. Silica particles embed within the polymer matrix, providing the necessary wettability. These hydrophilic silica clusters draw the sulfuric acid into the pores, ensuring the separator wets out completely and functions as an ionic conductor rather than an insulator.
The extrusion process also dictates the physical profile of the material. Calender rollers press the extruded sheet into its final shape, forming the back-web and the raised ribs simultaneously. The precision of these rollers determines the consistency of the material, which is a strict requirement for automated battery assembly lines.
The environment directly adjacent to the positive plate is brutally oxidative. During the charging phase, nascent oxygen generates at the positive grid, attacking any surrounding organic materials. Legacy separators frequently failed here, carbonizing and crumbling into the bottom of the case, leading to premature battery death.
UHMWPE offers exceptional chemical stability. Its long molecular chains resist oxidative breakdown far better than standard plastics or cellulose. This stability prevents the separator from degrading, thinning, or dissolving over the battery's lifespan. Even in high-heat under-hood automotive applications, the material retains its structural integrity, ensuring long-term durability and preventing late-life short circuits.
Electrical resistance dictates how fast a battery can deliver its stored energy. A high-quality separator typically boasts a porosity between 50% and 60%. This massive void volume directly correlates to exceptionally low electrical resistance. The acid moves freely, facilitating rapid electrochemical reactions at the plate surface.
This low ER is mandatory for automotive SLI (Starting, Lighting, Ignition) batteries. Starting an engine requires a massive, instantaneous burst of high current. Any resistance within the separator creates a bottleneck, dropping the voltage and reducing cold cranking amps (CCA). The microporous structure of polyethylene minimizes this voltage drop, ensuring reliable engine starts even in sub-zero temperatures where the acid viscosity increases.
Engineers must match the separator technology to the specific battery design. Polyethylene excels in flooded or wet cell batteries. In these designs, the liquid electrolyte flows freely around the plates. The PE acts purely as a physical barrier and ionic pathway. It does not need to hold the acid, allowing for maximum acid volume and thermal dissipation.
Conversely, Valve-Regulated Lead-Acid (VRLA) batteries require an Absorbed Glass Mat (AGM). AGM separators perform a fundamentally different function. They must physically absorb and hold the liquid electrolyte in suspension, preventing spills and enabling oxygen recombination. While AGM offers superior vibration resistance and allows for spill-proof designs, it cannot match the low electrical resistance and high-volume manufacturing efficiency of polyethylene in flooded applications.
Modern high-performance applications have largely phased out legacy materials due to severe operational limitations. Microporous hard rubber, once the standard for industrial batteries, suffers from excessively high electrical resistance and brittle mechanical properties. It cracks under heavy vibration and requires thick profiles that displace too much acid.
Polyvinyl chloride (PVC) and treated cellulosic blends face severe environmental and degradation issues. Cellulose breaks down rapidly in hot sulfuric acid, leading to premature cell failure. PVC introduces chlorine impurities into the electrolyte, which aggressively attack the positive grids. Polyethylene eliminated these chemical and mechanical shortcomings, providing a clean, stable, and highly conductive alternative.
Selecting the correct material requires aligning the separator's physical properties with the operational demands of the battery. Different applications demand entirely different separator profiles.
Battery Application | Operational Requirement | Recommended Separator Technology |
|---|---|---|
SLI (Automotive) | Low electrical resistance, high cranking amps, rapid acid flow. | Standard PE with thin back-web |
Start-Stop & Enhanced Flooded (EFB) | Enhanced acid circulation, high charge acceptance, dynamic cycling. | Advanced PE profiles with optimized cross-rib geometry |
Deep Cycle / Motive Power (Forklifts) | High puncture resistance, active material retention, vibration control. | Heavy-duty PE with glass mat backing (laminations) |
VRLA / Standby Power | Electrolyte suspension, oxygen recombination, spill-proof design. | Absorbed Glass Mat (AGM) |
During discharge, positive plates convert to lead sulfate, causing them to physically expand. This expansion exerts immense pressure on the separator. Furthermore, automotive and industrial batteries endure constant vibration. High mechanical strength is a strict requirement to prevent the material from tearing under these stresses.
Engineers evaluate puncture resistance using standardized testing probes, typically driving a hemispherical needle into the material at a set feed rate. The material must withstand a specific force before rupturing. If the puncture strength is too low, the expanding grid wires or shedding active material will pierce the membrane, causing an immediate dead short. Heavy-duty applications often utilize thicker back-webs to boost this metric, accepting a slight increase in electrical resistance for guaranteed durability.
Porosity dictates performance, but pore size dictates safety. The acceptable micron range for pore sizes is strictly sub-micron, typically averaging around 0.1 to 0.2 microns. If pores exceed a certain diameter, microscopic lead particles can migrate through the material, creating conductive bridges that short the cell.
Manufacturers face a strict trade-off during the extrusion and extraction process. Increasing total porosity lowers electrical resistance and boosts cold cranking amps. However, pushing porosity too high compromises the structural integrity of the polymer matrix. The material becomes weak and prone to tearing during the enveloping process. Precision control over the silica-to-oil ratio dictates this delicate balance.
A separator is not a flat sheet. It features a thin back-web combined with raised vertical ribs. The back-web provides the actual barrier, while the ribs serve multiple mechanical functions. Ribs face the positive plate to maintain precise plate spacing. They create vertical channels that allow the acid to circulate freely and prevent acid stratification.
These rib channels facilitate gas escape. During charging, oxygen and hydrogen bubbles form on the plates. The ribs allow these gases to rise to the surface safely. Engineers carefully evaluate back-web thickness versus rib height to optimize cell compression. Proper compression holds the active material against the grid, preventing shedding and extending cycle life. Some advanced designs incorporate mini-ribs on the negative side to further enhance acid flow and prevent the flat back-web from sticking to the negative plate.
In modern assembly lines, manufacturers fold the separator into an envelope around the positive or negative plate. This enveloping process seals the sides and bottom, preventing active material from falling into the mud space and causing bottom shorts. It also protects the edges of the plates from side shorts.
Mechanical failure during this sealing process is a primary manufacturing risk. Facilities use mechanical crimping or ultrasonic welding to seal the edges. If the polymer is too brittle, it cracks at the fold. If the welding temperature is incorrect, the seal fails or burns through the back-web. Any breach in the envelope allows dendrites to bypass the barrier, leading to immediate cell failure. Assembly lines require strict tolerance checks on the folding gears to prevent micro-tears.
The solvent extraction phase of manufacturing is highly sensitive. The process uses solvents like trichloroethylene or hexane to remove the plasticizer oil. The extraction line must remove the exact right amount of oil. Leaving too much residual oil in the polymer matrix creates severe operational problems.
Excess oil coats the silica particles, destroying their hydrophilic properties. This negatively impacts wettability, causing the acid to bead up rather than penetrate the pores. Consequently, electrical resistance spikes. Residual oils can leach into the electrolyte over time, introducing unwanted organic impurities that disrupt the electrochemical reaction and increase water consumption.
Procurement teams must evaluate suppliers beyond just data sheet specifications. Consistency across massive production runs is a hard requirement. Roll-to-roll thickness variations can jam automated enveloping machines, halting assembly lines and causing massive production delays.
OEMs must audit suppliers for silica dispersion uniformity. Clumped silica creates weak spots, areas of high electrical resistance, and uneven wettability. The global availability of raw UHMWPE dictates supply chain stability. Partnering with manufacturers who demonstrate strict quality control, robust raw material sourcing, and consistent roll splicing techniques prevents costly production bottlenecks.
Request comprehensive technical data sheets (TDS) from suppliers to verify electrical resistance and puncture strength metrics against your specific application requirements.
Conduct pilot cell testing to evaluate envelope sealing integrity and fold-crack resistance on your specific automated assembly equipment.
Audit supplier manufacturing facilities to confirm consistent silica dispersion and strict control over residual oil extraction levels.
Specify back-web thicknesses and rib profiles based strictly on the end-use application, differentiating between SLI, EFB, and deep-cycle requirements.
A: A battery separator is a porous membrane placed between the positive and negative plates. Its primary function is to prevent physical contact and electrical short circuits while allowing the free flow of ionic current through the electrolyte and mitigating parasitic self-discharge.
A: A PE seperator is used because ultra-high molecular weight polyethylene offers an ideal combination of exceptional oxidation resistance, high flexibility for enveloping, and very low electrical resistance due to its silica-induced microporous structure.
A: PE separators are used in flooded lead-acid batteries where the liquid electrolyte flows freely. AGM (Absorbed Glass Mat) separators are used in VRLA batteries and are designed to physically absorb and hold the liquid electrolyte in suspension.
A: Higher porosity in a separator lowers electrical resistance, allowing for higher power output and faster charging. However, if pores are too large, it increases the risk of lead dendrites penetrating the material and causing a short circuit.
A: Separator failure is typically caused by severe oxidation from high acid temperatures, physical puncture from expanding positive plates, or dendritic growth (lead treeing) that breaches the microporous membrane over repeated deep discharge cycles.
A: The ribs on a battery separator face the positive plate to maintain precise spacing, provide a reservoir for the acid electrolyte, and create channels that allow oxygen and hydrogen gases generated during charging to safely escape to the surface.
